S-68 Optimized Professional Car Spray Paint Room High Efficiency Automobile Fuel Spray Booths Diesel Burner Heating LED Lighting

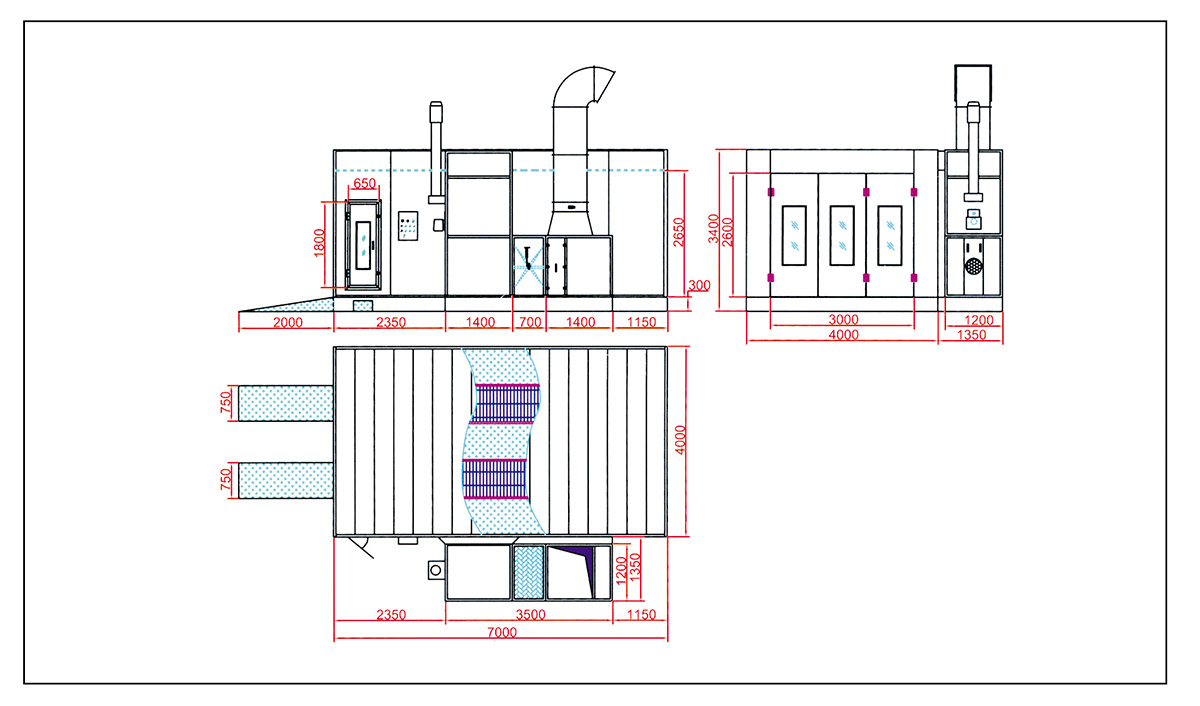

Outer dimension(mm) | Inner dimension(mm) | Door dimension(mm) | Painting power | Baking total power | Voltage/Frequency |
7000L×5200W×3370H | 6900L×3900W×2650H | 3000W×2600H | 8.0Kw | 9.5KW | 380V/50Hz |
Heating ways | RIELLO G10 diesel burner,double layer stainless steel heat exchange,pneumatic damper actuater from spraying to baking cycle.Max.heating productivity:260000kcal/h,max temperature:80℃,4pcs chimney,1pcs bend. | ||||
Wall material | Flame retardant 50mmEPS composite steel thickness of double 0.376mm,added to the two sides of the keel,improve the antipressure strength. | ||||
Front&Emergency door | 3big manual sheet metal door.both to ensure strength and beautiful atmosphere,observation window adopts the double-layer hollow 8mm thick tempered glass;work with special 2,, thick aluminum alloy hemming,to ensure both sealing and no deformation. | ||||
Roof board | With 0.8mm zinc plated steel steel,single layer. | ||||
Basement | All around with welded 1.2mm zinc plated steel sheet,Bearing bracket with welded 40*80*1.5zinc plated tube,which can be antiseptic and durable.The ground grid is full of hot dip galvanized steel.Two rows of grid and three rows of diamond plate.Two pcs 630mm width slope. | ||||
Lighting system | 3×16W:With LED lamps,be energy saving and longer lifetime,8 groups at roof,each group:3×16W. | ||||
Intake system | With two pcs centrifugal blower,power 4KW With SIEMENS air conditioner motor technology,direct drive,Air volume:25000m³/H,Rated air speed:0.38m/s,air changes:times/h,Aluminum frame,outer be sealed by double board. | ||||
Exhaust system | No motor in cabiner,zinc plated tube frame.,outer be sealed by single board. | ||||
Control system | With lighting switch,painting switch,warm painting,baking temperature,time setting,urgent stop switch.All components with famous domestic brand. | ||||
Air purification | Inlet with high grade fiberglass filter,which filtered the dust larger than 10um,roof with EU5 CC-600G filter.TSP value:≤1.4mg/m³ | ||||
Discharged air treatment | （Optional）First step with filter under the grid,second step be filtered by dry activated carbon at exhaust port. | ||||
Ducts standard features | 3straight tube，1 elbow tube. | ||||
Available colors | Blue 、orange 、red、grey white | ||||
